Is pulmonary artery a dose-limiting organ at risk in non-small cell lung cancer patients treated with definitive radiotherapy?
© The Author(s). 2017
Received: 18 October 2016
Accepted: 24 January 2017
Published: 1 February 2017
Our previous study suggested that some pulmonary artery (PA) dosimetric parameters were associated with mortality in unresectable non-small cell lung cancer (NSCLC) treated with definitive radiotherapy. The present study aims to analyze the impact of both PA and heart dosimetric parameters on survival of patients with NSCLC treated with definitive conventional fractionated radiotherapy (CFRT) in another independent research center and further determine whether the PA should be considered a dose-limiting organ at risk (OAR) for patients receiving thoracic CFRT.
We performed a retrospective analysis of successive patients with medically inoperable or unresectable NSCLC treated with definitive radiotherapy or chemoradiotherapy from August 2010 to September 2014. Clinical and pathological information, PA and heart dosimetric factors, and follow-up data were collected from each patient’s records and evaluated as potential prognostic factors for survival. Survival probabilities were estimated by the Kaplan-Meier method and compared by the log rank test. Cox proportional hazards regression models were performed to determine the independent predicators of survival. The optimal cutoff points of continuous dosimetric variables were determined by Youden index in receiver operating characteristic (ROC) analysis.
This study analyzed the records of 141 patients, 50.4% had adenocarcinoma, 71.6% had stage III disease, and 55% patients received concurrent chemoradiotherapy. Radiation dose ranged from 60 to 76 Gy in 30–38 fractions. Median follow up was 16.9 months. Median overall survival (OS) was 20.5 months (95% confidence interval [CI] 10.3-30.7 months), and 1-, 2-, 3-year OS rates were 75.2%, 58.2% and 56%, respectively. Univariate and multivariate analysis showed that Karnofsky Performance Status (KPS) score, Charlson’s Comorbidity Index (CCI), T and N stage, PA invasion grade and the percentage of PA volume that received 40 to 55 Gy (PA V40-55) were significantly associated with OS. No significant associations were found between heart dosimetric factors and OS. Median OS of patients with PA invasion grade 0, 1, 2, and 3 were 41.8, 27.8, 12.7 and 7.5 months, respectively (P < 0.001). PA V40, V45, V50 and V55, using thresholds of 80%, 68%, 45%, and 32%, respectively, were independent predictors for OS.
PA invasion grade and PA V40-55 appear associated with OS in patients with NSCLC treated with definitive CFRT. We propose that PA be considered as a dose-limiting OAR for such patients.
KeywordsPulmonary artery Non-small cell lung cancer Definitive radiotherapy Organ at risk Survival
Lung cancer is one of the most common cancers worldwide, and non-small cell lung cancer (NSCLC) comprises 85% of lung cancer cases . Radiotherapy is the primary method of treating patients with medically inoperable or unresectable locally advanced NSCLC (LA-NSCLC) [2–4]; addition of concurrent chemotherapy to radiotherapy (CRT), which is standard care for unresectable LA-NSCLC, achieves a median OS of 17–27 months [5–8]. Nevertheless, some patients suffer early recurrence and severe adverse events, such as radiation-induced pulmonary and esophageal injury, as well as massive hemoptysis.
Optimizing the radiation plan and minimizing radiation-induced toxicities requires limiting the dose to the organs at risk (OAR). Dose-volume parameters of lung, such as V20 and mean lung dose (MLD), are known to play an important role in predicting severe radiation pneumonitis and early deaths . The pulmonary artery (PA) is the most commonly tumor-involved thoracic great vessel [10, 11]. Patients who had PA invasion by tumor were usually considered to have unresectable disease, though vascular reconstruction has been applied in selected patients. Our previous study of 100 patients with inoperable NSCLC in the United State first categorized the grade of PA invasion by contrast-enhance Computed Tomography (CT) or Positron Emission Tomography (PET) scan and indicated that only 2 out of 4 patients with grade 5 PA invasion experienced massive bleeding caused death, and overall grades of PA invasion were not associated with overall survival in patients with inoperable NSCLC. However, in patients with LA-NSCLC treated with concurrent chemoradiation, the proportion of PA volume that received more than 45–60 Gy was associated with shorter OS .
The heart is known to be an important OAR for patients receiving thoracic radiotherapy. Postoperative radiation therapy for lung cancer was associated with increased mortality from heart disease . In the RTOG 0617 trial, there were less than 5% cardiac adverse events (≥ grade 3) in either the high dose or low dose arm, and multivariate analysis showed that the higher proportions of heart volume receiving ≥ 5 Gy (H V5) or ≥ 30 Gy (H V30) were significantly correlated with shorter survival . However, Tucker et al.  did not confirm the result of that trial regarding the impact of heart dose volume on OS.
In our previous study , the heart was not evaluated in the univariate or multivariate analysis. In addition, data from another independent research center is needed to confirm these findings regarding the PA. Hence, we performed a retrospective analysis to re-evaluate the results of the previous study and verify the impact of dosimetric parameters of the PA and heart on the survival of patients with NSCLC treated with definitive conventional fractionated radiotherapy (CFRT) with or without chemotherapy and to determine whether PA should be considered an OAR and what PA dose/volume limit should recommended for patients receiving definitive CFRT.
We retrospectively reviewed the records of successive patients with pathologically confirmed and medically inoperable or unresectable stage I-IIIB NSCLC at Shengjing Hospital between August 2010 and September 2014. Patients who had good Karnofsky Performance Status (KPS) (≥70), acceptable forced expiratory volume in 1 s (FEV1) (>1.2 L) or FEV1% (>70%), and received the definitive conventionally fractionated radiotherapy with or without concurrent chemotherapy were included in this study. Comorbidities, including hypertension, cardiac-cerebral vascular disease, and chronic obstructive pulmonary disease, were calculated by Charlson’s Comorbidity Index (CCI) [15, 16]. This study was approved by the local ethics committee of our hospital. All patients provided written informed consent prior to participating in the study.
Radiotherapy parameter extraction
Grading criteria of pulmonary artery invasiona
Definition based on CT contrast
Grade 0 (no invasion)
No evidence of vessel invasion, ≥1 mm from the closest pulmonary vessel wall (presence of a fat plane between tumor and vessel wall)
Grade 1 (minimal invasion)
Tumor invasion with 0 mm to the closest pulmonary vessel wall, no fat plane, without presence of narrowing or truncation of vessels, nor signs of vessel wall damage (irregularity, discontinuity or intra-luminal mass formation)
Grade 2 (moderate invasion)
Circumferential involvement with narrowing or truncation
Grade 3 (extensive invasion)
Tumor invading pulmonary vessel extensively with any sign of vessel wall damage: irregularity, discontinuity or intra-luminal mass formation or massive haemorrhage due to the tumor invading pulmonary artery
All patients underwent follow up with chest CT scan every 3 months during the first two years after radiotherapy and every 6 months thereafter. In addition, abdominal CT, bone Emission Computed Tomography and brain Magnetic Resonance Imaging scans were performed every 6 months or as clinically indicated. OS was calculated from the start of radiotherapy until any cause of death or the last date of follow-up. Patients still alive at the last follow-up date (Sep 25, 2015) were censored on that day, and loss to follow-up was considered as a censored event. Progression-free survival (PFS) was calculated from the start of radiotherapy until the first imaging diagnosis of recurrent or progressive disease. Local progression-free survival (LPFS) was based on recurrence within the radiation field.
Lymph nodes stage
Weight loss (%)
PA invasion grade
Target volume (cc)
D95 to targets (Gy)
D95 to GTV
D95 to CTV
D95 to PTV
Dmax to PA (Gy)
Dmean to PA (Gy)
Large-cell & NOS
Dmax to Heart (Gy)
Dmean to Heart (Gy)
RT dose (Gy)
Characteristics of patients

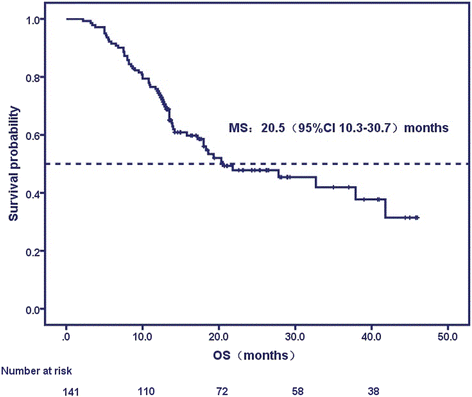

One hundred forty-one patients with pathologically confirmed stage I-IIIB NSCLC were eligible for this study. Patient characteristics are summarized in Table 2.
Correlation of potential prognostic factors
The correlations among clinicopathologic factors and dosimetric parameters were calculated. RT dose was not correlated with GTV, CTV and PTV; Pearson correlation coefficients were 0.171, 0.121 and 0.064, respectively, all P values were > 0.05. Both T stage and N stage were not correlated with volumes of GTV, CTV or PTV or D95 to target volumes, Pearson correlation coefficients ranged from −0.126 to −0.291, all P values were > 0.05. In addition, no correlations were noted between heart dosimetric parameters and target volumes (P > 0.05). Only weak correlations were found between target volumes and some PA dosimetric parameters (PA V35-60) and between H V40-65 and PA V35-65, but all Pearson correlation coefficients were less than 0.4, P < 0.05.
Results of univariate survival analysis
The result of multivariate analysis of significative potential prognostic factors associated with overall survival by using univariate analysis
PA invasion grade
Results of multivariate survival analysis
Overall survival (OS) of different grade of PA invasion
Median OS (95%CI) (months)*
1-year OS rate (%)
2-year OS rate (%)
The present study demonstrated that the score of KPS, CCI, stages of T and N, PA invasion grade, as well as percentage of PA volumes that received 40–55 Gy were independent prognostic factors of OS for patients with NSCLC treated with definitive CFRT. PA invasion grade was significantly associated with OS, though it was not associated with bleeding during or after radiotherapy. In addition, patients with PA V40 > 80%, V45 > 68%, V50 > 45% or V55 > 32% had a significantly shorter OS. The results further confirmed our previous conclusions  and suggested that the PA should be regarded as an OAR during conventionally fractionated thoracic radiotherapy or chemoradiotherapy, and that the grade of PA invasion and PA dosimetric parameters V40-55 could be used to predict survival for those patients with NSCLC who received definitive CFRT.
Radiation induced lung injury, esophagitis, and heart injuries are the most frequent radiation related toxicities and have been widely investigated recently. The RTOG 0617 trial  revealed that high dose radiotherapy given to patients with LA-NSCLC failed to improve local control and prolong OS compared with standard dose radiotherapy. The possible damage to the local immune microenvironment of the field receiving high dose radiation, and the radiation related toxicities might be the major reason why patients with high dose radiotherapy had shorter survival. In this trial, H V5 and H V30, but not radiation modalities were correlated with OS ; The present study also evaluated the relationship between OS and heart dosimetric parameters including maximum or mean dose to the heart, or the percentage of heart volume that received a specific dose (H V5-70). However, no significant associations were found between them, although the radiation related heart injury was not evaluated herein. The reason for this finding might be attributed to relatively strict radiation dose constraints for heart that were used in our study. Our results were in accordance with Tucker et al’s study , which found that heart dosimetric parameters did not significantly affect survival.
A great vessel is deemed as a dose-limiting organ when lesions are given hypofractionated or stereotactic body radiotherapy (SBRT) . Some researchers thought there were greater risks of severe hemoptysis and early mortality among patients who had severe PA invasion during or after radiotherapy. A previous study stated that vessel rupture may result from the penetration of the tumor into the vessel wall itself . However, a later study  showed that this explanation might be implausible because penetration of a tumor into the wall of an elastic artery is so unusual except in the following circumstances: the vessel itself (e.g., atherosclerosis), had exposed vasa vasorum during surgery and damage to the adventitia caused by ulcer, fistulas or infection around artery that were independent of radiotherapy . Another study showed that toxicity to the aorta after reirradiation was relatively rare, even when maximum composite doses to the aorta exceeded 100 Gy .
Recently, our study  first proposed grading criteria for PA invasion from grade 0 to grade 5, describing the distance of tumor to the PA, degree of circumferential involvement of the PA, and status of vessel wall damage. In that study, we found patients with PA invasion of grade 0–1 had a longer median OS than those with grade 2–5 (33.4 months vs. 18.3 months, P = 0.242), and two of the 4 patients with grade 5 PA invasion died suddenly from massive hemorrhage at 3 and 4.5 months after completion of radiotherapy. To facilitate its clinical use, we simplified the grading system to grade 0, 1, 2, 3 for no, minimal, moderate, and extensive invasion, respectively. In this group of patients, we found a significant relationship between grade of PA invasion and survival. Two patients with extensive PA invasion died of massive bleeding after radiotherapy. We believe that a higher grade of PA invasion indicates worse clinicopathologic behavior and prognosis, though few bleeding events were observed during or after radiotherapy in both studies. In the future, reliable imaging or pathological assessment of great vessel rupture needs to be developed to confirm this assumption.
The present study also found that the percentages of PA volume that received 40–55 Gy were significantly associated with OS regardless of target volume, KPS, CCI and stage. Especially, patients with PA V45 > 68%, and those with PA V55 > 32% had a significantly shorter OS. Interestingly, the results were highly consistent with our previous study in which high dose volume of PA V45-60 was predictive of shorter OS, and the cut-off values of PA V45 and V60 were 70% and 37%, respectively. Both studies suggest that PA V45 (68-70%) is a better cut-off value predictive of shorter OS in patients with LA-NSCLC treated with CFRT. Our findings differed from those using SBRT, in which maximum dose exceeding 50 Gy to the PA was related with massive hemoptysis and caused death ; in our study, when CFRT was administrated, the maximum dose to the PA was not related with OS.
In the present study, we found that GTV, CTV, PTV and dose coverage of target volumes were not associated with OS, which seemed contradictory to the effect of the factors T or N stage on OS, because a higher T or N stage often results in a larger target volume. However, we did not see any correlation between T or N stage and the target volumes GTV, CTV or PTV. Correlation analysis revealed only weak correlations between target volumes and PA V40-V55, thus ruling out an influence of target volume on PA volume dose. Certainly, our study may be too small to distinguish the independent or synthetic effect of heart and PA dosimetric parameters on survival. Future prospective studies with larger numbers of patients are needed to pursue the combined effects of heart and PA dosimetry. In addition, in our study only two patients with extensive PA invasion died of fatal hemoptysis after radiotherapy during follow-up. Hence, it appears that in this cohort, these rare outcomes, such as fatal hemoptysis or massive bleeding, are not good end points guide recommendations for dosimetric constraints for this OAR. PA grading variation from the start of radiotherapy to death may be an alternative end point. However, this is not evaluated in the present study because the accurate PA grading variation largely depends on reliable imaging or pathological analysis of abnormalities, such as ulcer, fistula, and stricture. On the other hand, we believe that the PA is an OAR similar to the heart, and that higher dose-volume irradiation to the PA might also cause serious consequences such as pericarditis, arrhythmia, and fatal hemoptysis. Future studies are needed to validate these postulations.
PA invasion grade and PA V40-55 were independent factors predictive of OS regardless of KPS, CCI and stage in patients with NSCLC treated with definitive CFRT. We proposed that the PA should be regarded as an organ at risk relevant to target delineation and dose limitation during CFRT. Limiting moderate-to-high PA dose volume, especially PA V45, is recommended due to its better ability to predict survival.
3-Dimensional conformal radiotherapy
Area under the curve
Charlson’s comorbidity index
Conventional fractionated radiotherapy
Chronic obstructive pulmonary disease
Concurrent chemotherapy to radiotherapy
Clinical target volume
Cardiac vascular disease
Forced expiratory volume in 1 s
Gross tumor volume
Intensity modulated radiation therapy
Karnofsky performance status
Locally advanced non-small cell lung cancer
Local progression-free survival
Mean lung dose
Non-small cell lung cancer
Organ at risk
Positron emission tomography
Planning organ at risk volume
Planning target volume
Receiver operating characteristic
Radiation therapy oncology group
Stereotactic body radiotherapy
This study was supported by a grant from the National Natural Science Foundation of China (grant No. 81501990).
Availability of data and materials
The authors declare that all the data supporting the findings of this study are available within the article.
CH and JM designed the project. LS, XS, SZ and LH contributed to acquisition of data and data analysis. ZX and YL contributed to methodology of the process. JM and LS developed the software tools to analyze the data. CH was the Senior Author who oversaw the project. All authors read and approved the final manuscript.
The authors declare that they have no competing interests.
Consent for publication
Ethics approval and consent to participate
Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
