Current status of boron neutron capture therapy of high grade gliomas and recurrent head and neck cancer
© Barth et al.; licensee BioMed Central Ltd. 2012
Received: 14 June 2012
Accepted: 23 July 2012
Published: 29 August 2012
Boron neutron capture therapy (BNCT) is a biochemically targeted radiotherapy based on the nuclear capture and fission reactions that occur when non-radioactive boron-10, which is a constituent of natural elemental boron, is irradiated with low energy thermal neutrons to yield high linear energy transfer alpha particles and recoiling lithium-7 nuclei. Clinical interest in BNCT has focused primarily on the treatment of high grade gliomas, recurrent cancers of the head and neck region and either primary or metastatic melanoma. Neutron sources for BNCT currently have been limited to specially modified nuclear reactors, which are or until the recent Japanese natural disaster, were available in Japan, the United States, Finland and several other European countries, Argentina and Taiwan. Accelerators producing epithermal neutron beams also could be used for BNCT and these are being developed in several countries. It is anticipated that the first Japanese accelerator will be available for therapeutic use in 2013. The major hurdle for the design and synthesis of boron delivery agents has been the requirement for selective tumor targeting to achieve boron concentrations in the range of 20 μg/g. This would be sufficient to deliver therapeutic doses of radiation with minimal normal tissue toxicity. Two boron drugs have been used clinically, a dihydroxyboryl derivative of phenylalanine, referred to as boronophenylalanine or “BPA”, and sodium borocaptate or “BSH” (Na2B12H11SH). In this report we will provide an overview of other boron delivery agents that currently are under evaluation, neutron sources in use or under development for BNCT, clinical dosimetry, treatment planning, and finally a summary of previous and on-going clinical studies for high grade gliomas and recurrent tumors of the head and neck region. Promising results have been obtained with both groups of patients but these outcomes must be more rigorously evaluated in larger, possibly randomized clinical trials. Finally, we will summarize the critical issues that must be addressed if BNCT is to become a more widely established clinical modality for the treatment of those malignancies for which there currently are no good treatment options.
KeywordsBoron neutron capture therapy Gliomas Head and neck cancer Radiation therapy
Boron neutron capture therapy (BNCT) is based on the nuclear capture and fission reactions that occur when boron-10, which is a non-radioactive constituent of natural elemental boron, is irradiated with low energy (0.025 eV) thermal neutrons. This results in the production of high linear energy transfer (LET) alpha particles (4He) and recoiling lithium-7 (7Li) nuclei, as shown below.
In order to be successful, a sufficient amount of 10B must be selectively delivered to all tumor cells (~ 20 μg/g weight or ~109 atoms/cell), and enough thermal neutrons must be absorbed to cause lethal damage from the 10B(n,α)7Li capture reaction . The destructive effects of these high energy particles are limited to boron containing cells and since they have very short pathlengths in tissues (5–9 μm), in theory BNCT provides a way to selectively destroy malignant cells and spare adjacent normal cells. Clinical interest in BNCT has focused primarily on high grade gliomas [1–3], and more recently on patients with recurrent tumors of the head and neck region [4–7] who have failed conventional therapy. BNCT primarily is a biochemically rather than a physically targeted type of radiation therapy, and, therefore, it should be possible to selectively destroy tumor cells dispersed in normal tissue, providing that sufficient amounts of 10B and thermal neutrons are delivered to the site of the tumor. In this report, we will provide an update on BNCT, as it relates to the treatment of high grade gliomas and cancers of the head and neck region. We will briefly summarize current developments in the design and synthesis boron delivery agents, neutron sources, clinical dosimetry, treatment planning techniques, and past and ongoing clinical trials in the United States, Japan and Europe and finally, critical issues that must be addressed if BNCT is to be successful. Readers interested in more in-depth coverage of these and other topics related to BNCT are referred to the Proceedings of 13th and 14th International Congresses on Neutron Capture Therapy [8, 9].
Boron delivery agents
Research in the area of development of boron-containing delivery agents for BNCT started ~ 50 years ago with the investigation of a large number of low molecular weight boron compounds, from which the first generation agents emerged. The most important requirements for a BNCT delivery agent are: 1.) low toxicity and normal tissue uptake, with a tumor:normal tissue and tumor:blood (T:Bl) boron concentration ratios of ~3; 2.) tumor boron concentration of ~20 μg 10B/g tumor; 3.) relatively rapid clearance from blood and normal tissues, and persistence in tumor during neutron irradiations. The only two BNCT delivery agents currently used in clinical trials are sodium mercaptoundecahydro-closo-dodecaborate (Na2B12H11SH), commonly known as sodium borocaptate (BSH), and the boron-containing amino acid (L)-4-dihydroxy-borylphenylalanine, known as boronophenylalanine or BPA . Neither of these agents adequately fulfills the criteria indicated above, and for this reason third generation agents incorporating one or more polyhedral borane anions or carboranes have been investigated. With the development of new synthetic techniques and increased awareness of the biochemical requirements needed for effective boron containing agents and their modes of delivery, a number of new boron agents have emerged. The major challenge in the development of such agents has been the requirement for selective tumor cell targeting and the delivery of therapeutic boron levels with minimal normal tissue toxicity. The localized and effective destruction of glioblastoma (GBM) cells in the presence of normal brain represents a greater challenge than for malignancies at other anatomic sites. This is due to an additional biological barrier, the blood–brain barrier (BBB), and the highly infiltrative nature of glioma cells and their molecular heterogeneity.
Third generation boron delivery agents
Examples of new low- and high-molecular-weight boron delivery agents currently under evaluation*
Dodecaborate cluster lipids and cholesterol derivatives
Boronated DNA intercalators
Carboranyl porphyrazines
Dodecahyrdo-closo-dodecaborate clusters
Boronated cyclic peptides
Boron nitride nanotubes
Boron-containing purines, pyrimidines, thymidines, nucleosides and nucleotides have also been investigated as BNCT delivery agents [16, 17, 41], in particularly 3-carboranyl thymidines (3CTAs). For example, the thymidine derivative designated N5-2OH displays selective tumor uptake, a high rate of phosphorylation and low toxicity . Convection enhanced delivery (CED) of N5-2OH to rats bearing intracerebral RG2 gliomas has been effective for the selective delivery of therapeutic concentrations of boron to tumors with very high tumor:brain and tumor:blood ratios without any concomitant toxicity .
Boron-containing porphyrin derivatives (porphyrins, chlorins, bacteriochlorins, tetrabenzoporphyrins, and phthalocyanines) have been extensively investigated due to their usually low toxicity and natural affinity for tumors [19, 20]. Examples of such compounds are BOPP , CuTCPH, and H2OCP. Porphyrin derivatives have been shown to deliver therapeutic amounts of boron to tumor bearing mice and rats. They attained high tumor:brain and tumor:blood boron concentration ratios, and longer retention times in tumors than BSH and BPA. In addition, boron-containing chlorins, bacteriochlorins and phthalocyanines are promising dual agents for both BNCT and photodynamic therapy (PDT) of tumors. Two of these porphyrin derivatives have been FDA-approved as photosensitizers for PDT. This is due to the strong absorptions of these macrocycles in the red and near-infrared regions of the optical spectrum, and their unique photosensitizing properties . Other boron-containing DNA binding molecules, including alkylating agents, DNA intercalators, minor-groove binders and polyamines have been investigated . For example, derivatives of aziridines, acridines, phenanthridines, various Pt(II) complexes and carboranylpolyamines have been described. These compounds sometimes show low tumor selectivity and significant toxicity, in part due to their multiple cationic charges and/or ability for binding to DNA of normal cells. Boron-containing sugars, including derivatives of glucose, mannose, ribose, galactose, maltose and lactose have also been investigated [11, 42]. This class of molecules usually displays low toxicity and low tumor uptake, in part due to their hydrophilicity and fast clearance from tissues.
Among the high molecular weight boron delivery agents, monoclonal antibodies (MoAbs), liposomes and nanoparticles are the most common. MoAbs are a very promising class of tumor-targeting agents due to their high specificity for molecular targets such as EGFR and VEGFR [27–30]. Extensive studies have been carried out by Barth, Wu and Yang and their co-workers using a heavily boronated precision macromolecule that has been linked by means of heterobifunctional reagents to either the EGFR targeting MoAb cetuximab (ErbituxTM) , the EGFRvIII targeting MoAb L8A4  or EGF itself . These nanovehicles (NVs) have been administered intracerebrally (i.c.) by means of convection enhanced delivery (CED) to rats bearing receptor positive F98 gliomas, followed by BNCT [28, 29, 31–33]. The best survival data were obtained in F98 glioma bearing rats when these NVs were combined with intravenous or intra-arterial administration of BPA and BSH [28, 29, 31, 33] yielding a 2–3 fold increase in mean survival times (MST) compared to irradiated controls.
Immunoliposomes can deliver low molecular weight hydrophobic agents, such as BSH, via incorporation into their lipid bilayers [22, 23]. Liposomes can also transport large numbers of boronated molecules intracellularly and normally show high tumor boron uptake . Hawthorne, Feakes and their co-workers have extensively investigated liposomes as BNCT delivery agents of a variety of polyhedral boron anions and these studies were recently reviewed . High tumor boron concentrations were attained in vitro when polyhedral boron anions are encapsulated in tumor-selective unilamellar liposomes, but in vivo their therapeutic efficacy has yet to be demonstrated. Linkage of boron-containing liposomes to the MoAb cetuximab resulted in specific molecular targeting of the immunoliposomes to EGFR expressing F98 glioma cells . Boron-containing lipids bearing covalently-bound boron clusters also have been reported. These nanoparticles have the advantages of showing no leakage of encapsulated boronated compounds, delivering high concentrations of boron to tumor-bearing mice, and increasing survival times following BNCT [26, 37]. Additional classes of boron-containing nanoparticles have been investigated as BNCT delivery agents [35, 40] and this work has been recently reviewed .
Neutron sources for BNCT
As described in more detail later in this review, clinical studies on BNCT originated at the Brookhaven National Laboratory (BNL) and the Massachusetts Institute of Technology (MIT) in collaboration with the Massachusetts General Hospital (MGH) approximately 60 years ago . The initial trials for the treatment of high grade gliomas were carried out with fission reactor-produced beams of thermal neutrons. The inadequate penetration of tissue by thermal neutrons, 3-4 cm, led the clinical team in the MIT/Harvard trials to introduce intra-operative, open cranium irradiations with an air-filled balloon inserted into the surgical cavity to increase neutron penetration and avoid excessive dose to the scalp. After a hiatus of almost 25 years, more recent clinical trials were initiated at MIT and BNL, in the early 1990’s, using for the first time higher energy neutrons in the epithermal energy range (~0.4 eV ≤ E ≤ 10 keV). These higher energy neutrons obviated the need for intra-operative BNCT when treating deep seated malignancies. Epithermal neutrons, for example, can reach tumors at the midline of the brain at a depth of ~8 cm with therapeutic ratios >1. Epithermal neutrons are now generally used in BNCT irradiations although some intra-operative irradiations with thermal neutrons are still performed. Reactor-based facilities in Japan are capable of producing various mixtures of thermal and epithermal neutron spectra, which can be advantageous for head and neck cancers where deep beam penetration may not be required.

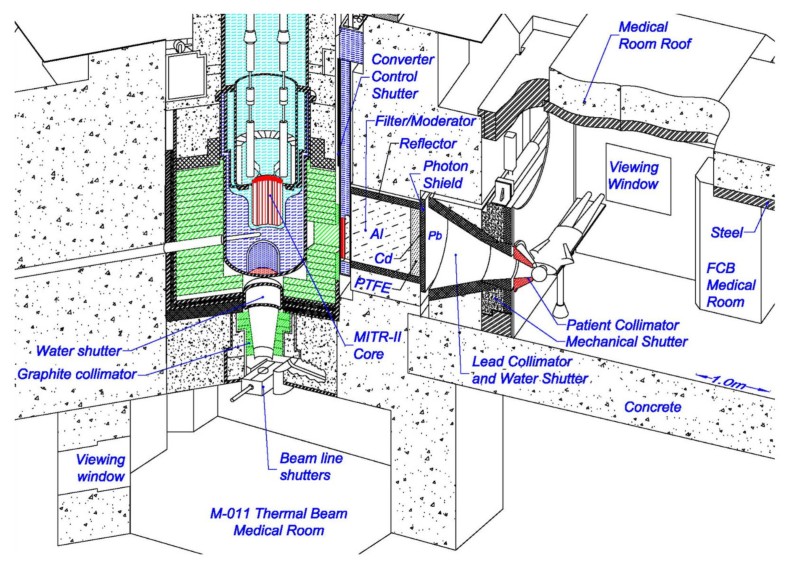

Fission reactor sources for NCT
The general characteristics of neutron beams for NCT are described in detail elsewhere  and the requirements for a facility capable of high patient through-put have been discussed by Harling . Two approaches have been used for the design of epithermal neutron irradiation facilities at fission reactors. Direct use of the core neutrons as the source has been the predominant approach for modification or conversion of existing reactors for NCT. More than eight such facilities have been constructed for clinical use in the Americas, Europe and Asia and several more are under construction. Performance characteristics for many of these facilities have been summarized in a review by Harling and Riley . An interesting new facility, which makes direct use of core neutrons from a low power reactor, was recently constructed in China and is located in a suburb of Beijing [46, 47]. This is the first reactor designed specifically for NCT and is based on an ultra-safe, low cost design specially suited for urban populated areas or within a hospital.
Unless BNCT becomes more broadly accepted as a treatment modality for specific cancers, the need to develop additional nuclear reactors remains limited and further construction seems unlikely. New, special purpose reactors like the one in China, which is still not in clinical use, are a possible source of additional neutron irradiation facilities. Additional reactor conversions and modifications also can be undertaken using proven approaches that require very little research and development effort.
Accelerator based neutron sources (ABNSs)
To date, all BNCT clinical irradiations have used fission reactor neutron sources, however accelerator based neutron sources are under development and may eventually provide another option to fission reactors. Accelerator based neutron sources are being developed for use in NCT with the anticipation of being easier to site in hospitals and license than a dedicated nuclear reactor. Proponents of accelerators also believe that they could be more compact and less expensive than comparable reactor sources. ABNSs for BNCT have been reviewed in detail elsewhere [50, 51]. Generally they produce low intensity neutron fluxes compared to reactor sources and this has been a problem for implementation. An increase in intensity by more than an order of magnitude would be necessary if accelerators are to be competitive with the better reactor sources for clinical BNCT. An ABNS recently has been constructed by Sumitomo Heavy Industries and approval for clinical use has been granted by the Pharmaceutical and Medical Safety Bureau of the Japanese Ministry of Health, Labour, and Welfare . It is anticipated that clinical trials will be initiated in 2013 using this ABNS. Finally, an 8 MeV, 10 mA linac system is under construction and this should be completed in two years (A. Matsumura, Personal Communication).
Clinical dosimetry and treatment planning
Clinical studies in BNCT have thus far been run usually as single cohorts of patients at individual centers spread across the world. These consisted mainly of Phase I/II trials to establish normal tissue tolerance and secondarily to demonstrate some possible therapeutic efficacy. Each center has, by necessity, developed their own methods to measure, calculate and prescribe absorbed doses for these trials through their own extramural research programs, and this limits their applicability to the local center where they were obtained. After more than 50 years, BNCT still remains, for the most part, an experimental modality with no standardized methods for either calibrating the mixed radiation fields employed or for calculating treatment plans that specify the patient prescription. This lack of uniformity hinders comparison of clinical results from different centers because it precludes combining or sharing clinical data on safety and efficacy in any meaningful way, which should be addressed if BNCT is to have a larger clinical role.

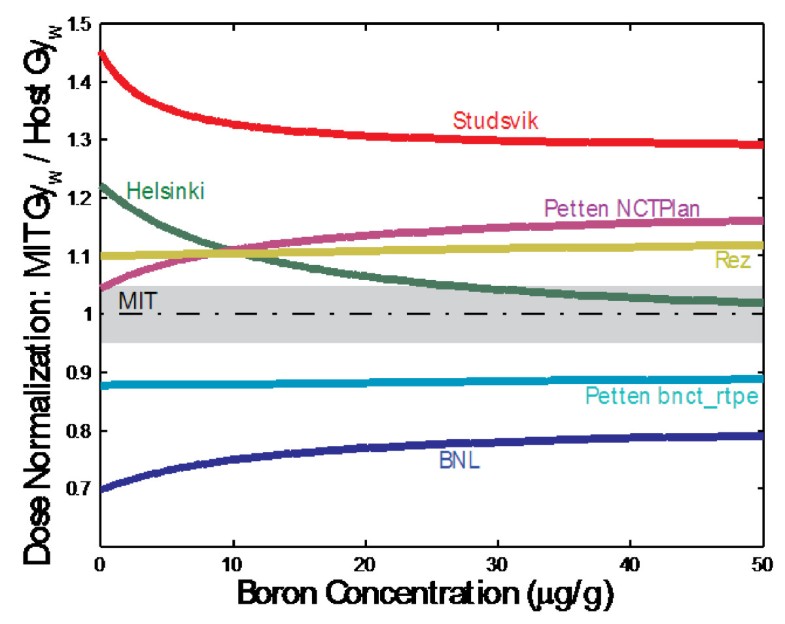

The dosimetry of epithermal neutron beams is complicated by the presence of photon and fast neutron dose components in the radiation field, each possessing a markedly different biological effectiveness that must be quantified separately. In order to account for the varying biological effectiveness of the dose components, multiplicative weighting factors have been applied to the individual dose components to allow expression of their sum as a single, total weighted dose (expressed as Gyw), which is approximately equivalent in effect to the same dose of photon radiation. These weighting factors generally have been RBE (relative biological effectiveness) factors measured in animal models . A few common dosimetric methods have been developed to determine the principal absorbed dose components contributed by boron and other low energy neutron capture reactions with normal tissue hydrogen and nitrogen. These dose components generally are determined from absolute measurements of the thermal neutron flux obtained by neutron activation analysis of bare and cadmium-covered gold foils [54, 55]. Gamma rays emitted by the activated foils are counted using a gamma spectrometer incorporating either a high-purity germanium or sodium iodide detector with a calibration traceable to a national standards laboratory. The measured thermal neutron flux is multiplied by the appropriate kerma coefficient for a given reaction and the assumed weight fraction of boron (or nitrogen) in the tissue that is being irradiated. Similarly, the twin ionization chamber technique , developed for fast neutron therapy , is often applied as the method of choice for assessing the adventitious dose arising from both the incident and induced photons as well as fast neutrons contaminating low energy neutron beams. Pairs of detectors are employed with different sensitivities to the two radiation types such as A-150 tissue equivalent plastic- and graphite- (or magnesium-) walled ionization chambers.

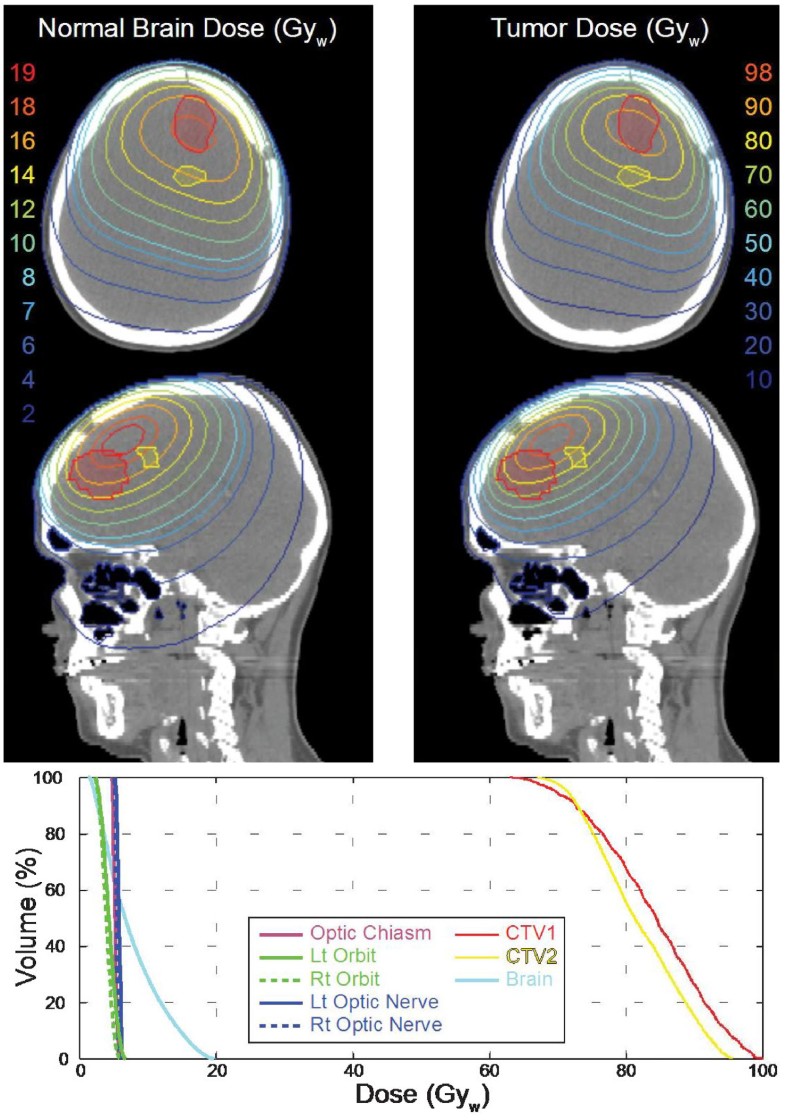

Treatment planning for NCT differs markedly from that of conventional radiotherapy and in some ways it is significantly more complex, requiring specialized software [58–61]. NCT treatment planning systems rely exclusively on Monte Carlo simulations for dose calculations because of the complex, scatter-dominated nature of neutron transport. The Monte Carlo method simulates transport of neutrons and photons through the patient’s geometry and uses track-length density estimators of neutron and photon flux integrated against energy-dependent kerma coefficients to compute dose. Treatment planning systems require careful validation by evaluating agreement between dose calculations and in-phantom measurements [62, 63]. Treatment planning calculations use individualized computational models of the target, constructed from CT or MR images. While electron density is the principal consideration for transport of megavoltage photon beams in tissue, neutron transport is governed by nuclear interactions. Since neutron cross sections vary significantly between elements, NCT dose calculations must model the elemental compositions of different tissue types in the region of interest. Concentrations of hydrogen, nitrogen, and boron have the most influence on neutron transport and dosimetry.
Clinical studies of BNCT for brain tumors utilizing thermal neutron beams
The clinical potential of BNCT first was recognized by Locher  shortly after the discovery of the neutron. However, it was not until 1951 that the first clinical trials were initiated by Sweet at the Massachusetts General Hospital (MGH) and Brownell at MIT  and Farr at the Brookhaven National Laboratory (BNL) in New York  using sodium tetraborate (borax), sodium pentaborate, p- carboxyphenylboronic acid, or sodium decahydrodecaborate (Na2B10H10) as the sole boron delivery agent. However, since these studies utilized thermal neutron beams they will not be discussed here. Interested readers are referred to a comprehensive review describing these studies in detail , as well as reports by Farr  and Asbury  and their co-workers. Similarly, Hatanaka  and later Hatanaka and Nakagawa  carried out extensive studies in Japan using BSH as the boron delivery agent . Again these studies also used thermal neutron beams, and therefore they will not be discussed in the present review. However, interested readers are referred to articles of Hatanaka  and Nakagawa , as well as those of other Japanese neurosurgeons who utilized thermal neutron beams.
Clinical trials carried out in the United States
BNCT clinical trials in the United States and Europe using epithermal neutron beams for patients with brain tumors
Tumor type & No. of patientsa
Boron compound & treatmentb
Brookhaven National Laboratory, Upton, NY, USA
Brookhaven Medical Research Reactor, BNL, Upton, NY, USA
BPA 250–330 mg/kg in 2 h
MeST: 12.8 mos.
2 y OS: 9.4%
Beth Israel Deaconess Medical Center, Harvard Medical School, Boston, USA
MIT Research Reactor, Massachusetts Institute of Technology, Cambridge, USA
BPA 250–350 mg/kg in 1.5 h
MeST: 11.1 mos (n = 18)
2 IC MM
2 y OS: 12%
BPA 14 g/m2 in 1.5 h
Universitätsklinikum Essen, Essen Germany
High Flux Reactor, JRC Petten, The Netherlands
BSH 100 mg/kg in 1.7 h
MeST: 10.4-13.2 mos.
4 IC MM (>20 IC mets ea.)
BPA 14 g/m2 in 1.5 h
OS: < 3 mos.
Helsinki University Central Hospital, Helsinki, Finland
FiR-1, VTT Technical Research Centre, Espoo, Finland
BPA 290–500 mg/kg in 2 h
MeST: 11.0-21.9 mos.
BPA 290–450 mg/kg in 2 h
MeST: 7 mos. post BNCT
1 y OS: 36%
2 y OS: 0%
Faculty Hospital of Charles University, Prague, Czech Republic
LVR-15 Reactor, Nuclear Research Institute Rez, Czech Republic
BSH 100 mg/kg in 1 h
Nyköping Hospital, Nyköping, Sweden
R2-0 Reactor, Studsvik Medical, Nyköping, Sweden
BPA 900 mg/kg in 6 h
MeST: 17.7 mos.
2 y OS: 14%
BPA 900 mg/kg in 6 h
OS: 32, 26+ mos. post BNCT
BPA 900 mg/kg in 6 h
MeST: 8.7 mos. post BNCT

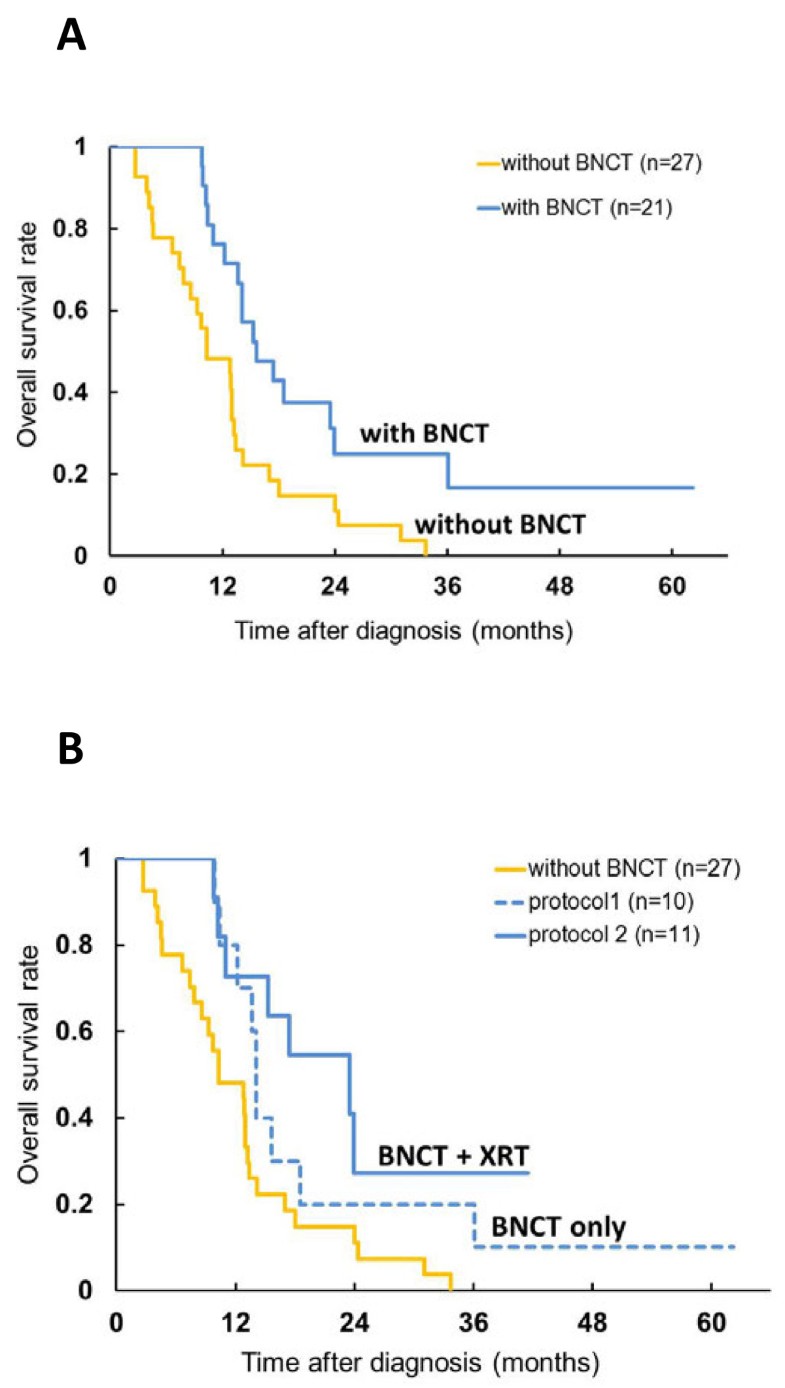

Clinical trials in Japan
BNCT clinical trials in Japan using epithermal or mixed thermal & epithermal neutron beams for patients with brain tumors
Tumor type & No. of patientsa
Boron compound & treatmentb
University of Tsukuba, Tsukuba City, Ibaraki, Japan
JRR-4, Japan Atomic Energy Agency, Tokai, Ibaraki, Japan
BSH 100 mg/kg in 1–1.5 h
MeST: 23.2 mos. (GBM)
MeST: 25.9 mos. (AA)
BSH 5 g in 1 h, IO-BNCT
MeST: 23.3 mos.
2 y OS: 43%
BSH 5 g in 1 h & BPA 250 mg/kg in 1 h
MeST: 27.1 mos.
2 y OS: 63%
BNCT + XRT
University of Tokushima, Tokushima, Japan
JRR-4 or KURR (Kyoto University Research Reactor, Osaka, Japan)
BSH 64.9-178.6 mg/kg
MeST: 15.5 mos.
2 y OS: 0%
BSH 64.9-178.6 mg/kg
MeST: 19.5 mos.
2 y OS: 27%
BSH 100 mg/kg & BPA 250 mg/kg
MeST: 26.2 mos.
2 y OS: 50%
BNCT + XRT
Osaka Medical College, Osaka, Japan
BSH 5 g & BPA 250 mg/kg in 1 h
MeST: 14.5 mos.
2 y OS: 20%
BSH 5 g & BPA 700 mg/kg in 6 h
MeST: 23.5 mos.
2 y OS: 27.3%
BNCT + XRT
BSH 100 mg/kg & BPA 250 mg/kg in 1 h or
MeST: 10.8 mos. post BNCT
2 rAA, 1 rAOA
BSH 100 mg/kg & BPA 700 mg/kg in 6 h
2 y OS: 14%
BSH 0–5 g
BPA 500–700 mg/kg in 3–4 h
Clinical studies in Finland
Kankaanranta et al. at the Helsinki University Central Hospital and VTT Technical Research Center of Finland have reported on 22 patients with GBMs who had undergone standard therapy, recurred, and subsequently received BNCT at the time of their recurrence using BPA as the boron delivery agent . The overall MeST was 7 mos. and the median time to progression was 3 mos. However, it is difficult to compare these survival data and those reported for patients with recurrent GBMs receiving conventional treatments. Nevertheless, they are a starting point for future studies using BNCT as salvage therapy in patients with recurrent tumors.
EORTC clinical study
APhase I clinical trial was carried out by the European Organization for Research and Treatment of Cancer to evaluate BSH as a boron delivery agent (protocol #11961) using the High Flux Reactor at Petten, the Netherlands. The aims of this study were to investigate the systemic toxicity of i.v. administration of BSH, the maximum tolerated radiation dose and the dose limiting toxicity of BNCT. At the time of reporting [83, 84] a total of 26 patients had been treated with BNCT with a starting dose of 8.6 Gy. In all but one patient, BNCT was performed in 4 fractions on 4 consecutive days. On the day prior to the first irradiation BSH (100 mg/kg b.w.) was administered i.v. Both the amount administered and the time from BSH infusion to irradiation (range 8–14 h) were adjusted to achieve a blood boron concentration of ~ 30 μg/g during irradiation. The MeST of the first patient group was 10.4 months after the first surgery, 11.3 months for the second group and 13.2 months for the third patient group . However, dose limiting toxicities were observed in this study .These mainly consisted of cerebral atrophy and white matter abnormalities .
Clinical studies in Sweden
We would like to conclude this section on BNCT of high grade gliomas with a summary of a clinical trial that was carried out in Sweden using BPA and an epithermal neutron beam. This study differed significantly from all previous clinical trials in that the total amount of BPA infused was increased to 900 mg/kg b.w., and it was given i.v. over 6 hours . This regimen was based on animal studies in F98 glioma bearing rats that showed that boron concentrations in invading tumor cells increased from 37% to 71% of that in the main tumor if the infusion time was increased from 2 h to 6 h . The higher dose and longer infusion time of the BPA were well tolerated by the 29 patients who were enrolled in this study [90–93, 112]. The minimum dose to the tumor ranged from 15.4 to 54.3 Gyw and the mean weighted dose to whole brain was 3.2-6.1 Gyw and all were treated with 2 fields. There has been some disagreement among the Swedish investigators who carried out this study on evaluation of the results. One group reported survival data that was compiled before all of the patients had succumbed to their tumors . Based on all of the survival data, another group [92, 93, 112] determined that the MeST was 17.7 mos. compared to 15.5 mos. for patients who received standard therapy of surgery, followed by radiotherapy (RT) and temozolomide. Furthermore, the frequency of adverse events were lower after BNCT (14%) than after RT alone (21%) and both of these were lower than those seen following RT in combination with temozolomide. If these improved survival data, using a 6-hour infusion time and a higher dose of BPA, can be confirmed by others, preferably in a randomized clinical trial, it could represent a significant step forward in BNCT of brain tumors, especially if combined with a photon boost.
Clinical studies of BNCT for head and neck cancer
Studies carried out in Japan
BNCT clinical trials using epithermal neutron beams for patients with recurrent or untreated unresectable head and neck cancer
Tumor type & No. of patients
Osaka University, Oral & Maxillofacial Surgery II, Osaka, Japan
KURR (Kyoto University Research Reactor, Osaka, Japan) or JRR-4, Japan Atomic Energy Agency, Tokai Research Establishment, Ibaraki, Japan
BSH 5 g & BPA 250 mg/kg in 1 h Or BPA 250–500 mg/kg in 1–2 h
MeST: 7.9 mos. post BNCT
2 & 4 y OS: 37%,
6 y OS: 32%
Osaka Medical College, Osaka, Japan
BPA 500 mg/kg (200 mg/kg h × 2 h; 100 mg/kg h × ~1 h during irradiation)
Kyoto University Research Reactor Institute (KURRI), Kyoto University, Osaka, Japan
BSH & BPA 250–500 mg/kg
PR: 29%, CR: 28%
MeST: 10.1 mos. (n = 53)
2 y OS: 24%
Kawasaki Medical School, Kurashiki, Japan
KURR or JRR-4
BPA 500 mg/kg (200 mg/kg h × 2 h; 100 mg/kg h × ~1 h during irradiation)
2 y OS: 32.3%
10 H&N MM
BPA 500 mg/kg
Helsinki University Central Hospital, Helsinki, Finland
FiR-1, VTT Technical Research Centre, Espoo, Finland
BPA 400 mg/kg in 2 h
MeST: 13 mos. post BNCT
2 y OS: 30%
1 ur PDC
BPA 400 mg/kg in 2 h
BNCT + Chemo-RT (IMRT + SRT) with cetuximab and cisplatin
Taipei Veterans General Hospital, Taipei, Taiwan
THOR, National Tsing Hua University, Hsinchu, Taiwan
BPA ~450 mg/kg (180 mg/kg h × 2 h; 90 mg/kg h × ~1 h during irradiation)
Patient population and treatment results

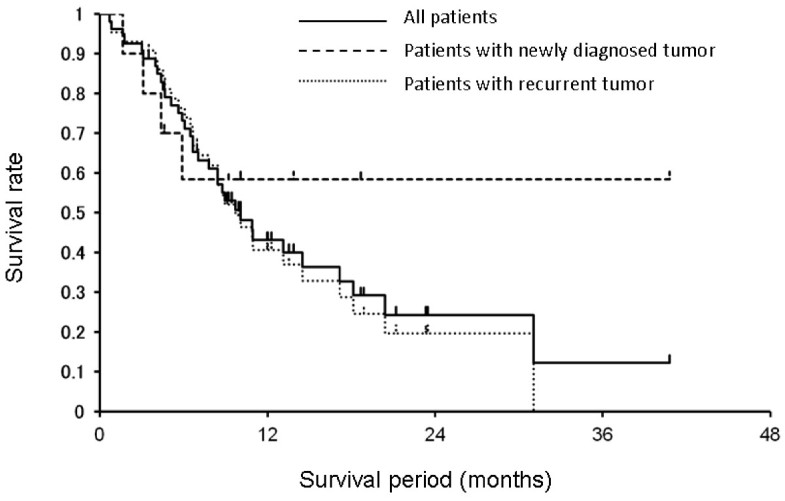

All of Suzuki’s patients had unresectable advanced or recurrent cancers of the head and neck region. Forty-nine patients (79%) had recurrent tumors and 13 (21%) had newly diagnosed unresectable tumors. Among the 49 patients, 39 (80%) had previous chemotherapy, 41 (84%) had previous surgical resection, and 36 (73%) had previous radiotherapy. Treatment sites included the oral and nasal cavities, paranasal sinuses and neck. Forty-two of the 62 patients received BNCT once, 17 received it twice, two received it three times, and one received it five times. Based on CT or MR imaging of 57 patients who had any target lesions, 16 showed a CR, and 17 had a PR for an overall response rate (CR + PR) of 58% at 6 months. MeST of 53 evaluable patients was 10.1 months from time of BNCT, and 1- and 2- year OS rates were 43% and 24%, respectively. The one year survival for newly diagnosed unresectable tumors was 58% and for those with recurrent tumors it was 41%. The MeST and median progression free survival (PFS) time and 1-year PFS rate for patients with recurrent tumors were 9.7 months, 5.1 months and 5%, respectively. The best 1-year OS was seen in 6 patients with recurrent adenocarcinomas (100%), followed by 6 with melanoma (60%) and in 29 with squamous cell carcinoma (26%). The major acute grade 3 or 4 BNCT-related toxicities were hyperamylasemia, fatigue, mucositis/stomatitis and pain, all of which were manageable. The most serious complications were carotid artery hemorrhage in 3 patients, two of whom died from rupture of an infected carotid artery, which had been invaded by tumor. In summary, the overall response rate and survival rate in both studies were comparable to those obtained with chemotherapy and re-irradiation, but in the majority of patients this was accomplished in one single BNCT treatment. One significant limitation of the approach used here was that deep-seated tumors could not receive a sufficient dose due to the limited depth of penetration of epithermal neutrons and, therefore, BNCT should be limited to more shallow tumors.
Study carried out in Finland
A third clinical trial, carried out in Helsinki Finland, recently has been reported by Kankaanranta et al. . A total of 30 patients with inoperable, locally recurrent cancers of the head and neck region were treated with BNCT. The majority (24 patients) had squamous cell carcinomas, and 14 of these were staged as T4, N0. They all previously had surgery and conventionally fractionated photon irradiation with or without chemotherapy. Patients were evaluated prior to BNCT by means of 18PET using 18 F-BPA, whenever possible, and in order to be treated by BNCT the tumor to contralateral normal tissue ratio had to be at least 2.5:1. Patients who were treated with BNCT received two treatments at 3 to 5 week intervals. BPA-fructose (400 mg/kg b.w.) was infused i.v. for 2 h prior to neutron irradiation, which was carried out at the Finnish BNCT facility in the outskirts of Helsinki. Neutron irradiation was performed via 2 ports; each with a median beam time of 18.6 min. Cetirizine hydrochloride was administered orally prior to irradiation and dexamethasone (10–15 mg/d) afterwards, in order to alleviate radiation related edema. More detailed information relating to other treatments that these patients received is provided in Kankaanranta et al.’s recent report . Twenty-nine patients were evaluable with a median PFS of 7.5 months, of which 22 (76%) responded, 6 (21%) had stabilization of tumor growth for 5.1 and 20.3 months and 1 progressed. Two-year OS was 30% and PFS was 20% and 27% of the patients had no evidence of recurrent disease at 2 years. Mucositis and oral pain were the most common grade 3 adverse events, followed by fatigue, bone necrosis in 3 patients and soft tissue necrosis in one. Based on these results it was concluded that BNCT was effective for the treatment of inoperable locally recurrent, previously irradiated patients with head and neck cancer. Some responses were durable, but usually progression was common, most frequently at the site of the previously recurrent tumor.
Study carried out in Taiwan
Finally, ten patients with recurrent, late stage cancer of the head and neck region have been treated at the National Tsing Hua University THOR reactor in Taiwan using BPA as the boron delivery agent. At the time of this writing 3 of the 10 patients have had complete regressions at the site of treatment .
The clinical results described above clearly have demonstrated efficacy, something that has been less convincingly demonstrated in patients with high grade gliomas. This is hardly surprising since it took a large randomized EORTC trial [124, 125] with 590 glioma patients to convincingly demonstrate that the administration of temozolomide concomitantly with radiation therapy produced a significant increase in overall median survival compared to radiation therapy alone and this was only 2.5 months (14.6 versus 12.1 months)!
What then is the future of BNCT? It probably lies in filling a niche for those malignancies, whether primary or recurrent, for which there is no effective therapy. What are some of the advantages of BNCT? First, it has the ability to selectively deliver a high radiation dose to the tumor with a much lower dose to surrounding normal tissues. This is an important feature that makes BNCT particularly attractive for salvage therapy of patients who have been treated to tolerance with photon irradiation. Second, it has the potential to more effectively target multicentric deposits of tumor than is possible with stereotactic radiosurgery of primary and metastatic brain tumors. Third, although it may be only palliative, it can produce striking clinical responses, as evidenced by the experience of several groups treating patients with recurrent, therapeutically refractory head and neck cancer [4–7, 122]. Furthermore, as is evident from data compiled in Table 2 summarizing the clinical results obtained in treating patients with either primary or recurrent high grade gliomas, there has been significant progress in improving the clinical results. Specifically, increasing the dose of BPA and administering it over a longer time period (92–95) or combining BNCT with a photon boost, as has been carried out in Japan (80), have resulted in the best survival data obtained to date using BNCT to treat patients with gliomas.
Critical issues that must be addressed include: 1. Development of new low and high molecular weight boron agents and optimization of their delivery; 2. Obtaining approval for the clinical use of these new agents from regulatory agencies and carrying out biodistribution studies in patients prior to resection of their tumors; 3. Prioritizing collaborative efforts to compare and normalize dose prescriptions between centers, thus enabling studies on larger trial populations and perhaps facilitating multi-institutional or possibly randomized clinical trials; 4. Improvement of methods to determine the boron dose delivered to the residual tumor volume on both macroscopic and microscopic levels to enable more accurate tumor dose assessment. 5. Be prepared to compete with or complement new therapeutic approaches. In this review we have summarized the current status of BNCT as a treatment for high grade gliomas and recurrent tumors of the head and neck region and outlined problems that we believe are important to solve in order to move forward with BNCT as a treatment modality. It is up to investigators, both in basic and clinical research, to come up with solutions to these problems.
Accelerator based neutron sources
Brookhaven Medical Research Reactor
Boron neutron capture therapy
Brookhaven National Laboratory
Clinical Target Volume
Dose volume histogram
Epidermal growth factor receptor
European Organization for Research and Treatment of Cancer
Fission converter beam
Kyoto University Research Reactor Institute
Lesion to normal brain
Median survival time
Massachusetts General Hospital
Multi-Modal Monte Carlo
Massachusetts Institute of Technology
MIT Research Reactor
Mean survival time
Median survival time
Neutron capture therapy
Position emission tomography
Treatment planning system
Vascular endothelial growth factor receptor
World Health Organization.
This paper is dedicated to Professor Emeritus Albert H. Soloway in celebration of his 87th birthday. Dr. Barth thanks Mrs. Heidi Bosworth for expert secretarial assistance in the preparation of this manuscript. Research of Drs. Barth, Binns, Harling, Kiger, Riley and Vicente has been supported by numerous grants from the United States Department of Energy and the National Institutes of Health. Animal studies described in this review were carried out under protocols approved by the respective Institutional Animal Care and Use Committees and in accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. Dr. Kawabata’s clinical studies have been supported by grants from the Ministry of Health, Labor and Welfare (MONBUSHO) from the government of Japan and were approved by the Ethical Committee of Osaka Medical College (No. 98, 218, 260) and by the BNCT Committee of Kyoto University Research Reactor Institute, Japan Atomic Energy Agency. Clinical studies that were carried out at Osaka University, Department of Oral and Maxillofacial Surgery II, were approved by the Ethics Committee of Osaka University Dental Hospital under approved Protocol H19-C1. Clinical studies carried out at Kawasaki Medical School, Okayama, Japan, were approved by the Institutional Ethical Committee.
